Night, white
Compact toy puppet theatre (3D)

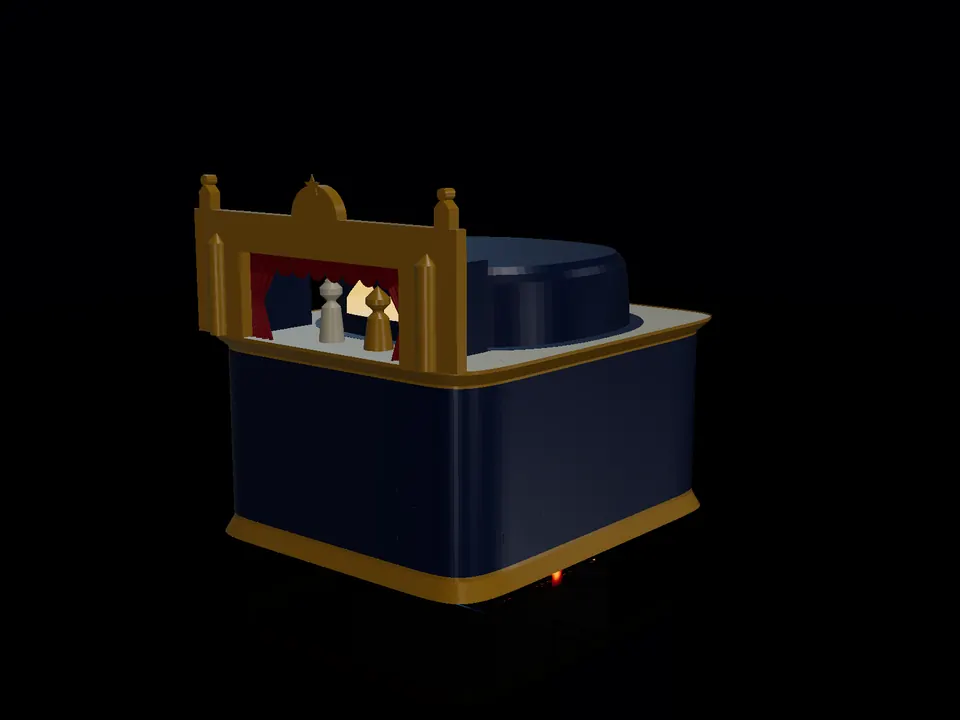

A chunky toy puppet theatre with up to four laptops inside: a navy booth with a gold frame, a star on top, red curtains and two little puppets on a stage that glows at night. 99.0 cm tall.
Designed and checked in CAD. Not built in real life yet.
€24
Standard plan. Every computer count included.
Inside
Take it apart
Size
How many computers?
- Height
- 0.99 m
- Footprint
- 106 × 87 cm
- Computers
- 4 laptops
- Power
- 1 power supply, 120 of 260 W
- Filament
- 12.3 kg
- Print time
- 622 h
- OrcaSlicer estimate, ±15 %
- Weight with boards
- 16.3 kg
- Parts and filament, without boards
- €448
- With used laptops (€40–60 each)
- €608–688
About this model
A generic toy puppet theatre, like a wooden toy booth, not a copy of any real theatre, product or character, with no lettering and no logo. The theatre itself is the model: a boxy navy booth with a gold hem at the bottom and a gold ledge at the top; on the ledge stands a thick gold frame with a round crest, a star and two pinnacles, with a half column on each side post. Behind the frame is a real stage, 19 cm deep: a red scalloped valance at the top, two red curtains in folds gathered to the sides, two simple puppets standing on the stage floor, navy side walls, and at the back a navy backdrop with two big windows that glow at night. Inside the booth sits the case with up to four laptop boards, hidden: no board can be seen from outside. The navy stage box behind the backdrop is the lid: lift it off to reach the boards. The air comes in under the booth and leaves through the backdrop windows and out of the stage.
Worth knowing
About 10.6 kg of filament with two computers and 12.3 kg with four (roughly 333 to 391 hours on a fast printer), in four colours: navy blue for the booth, the spacers, the stage side walls and the stage box; gold for the hem, the ledge, the frame, the star, the columns and one puppet; red for the valance and the curtains; cream for the stage floor, the other puppet, the case walls (hidden inside), the roof plate, the inner wall, the window linings and the floor ring. The booth skin is thin (0.6 mm) to stay under the weight limit: handle the booth pieces with care until they are glued. The frame stands on the booth's top edge and is held by glue: never lift the theatre by the frame.
Shopping list
What to buy for it
| Item | Qty | Price each | Where |
|---|---|---|---|
| Shared supply MEAN WELL GST280A20-C6P | 1 | €93.80 | Shop |
| Mains cord C13, 2 m, one per supply (not in the supply's box) | 1 | €3.60 | Shop |
| Supply output lead Molex 215328-1061 | 1 | €5.20 | Shop |
| XT60 pigtails, 5 + 5 pack (one pair per blade) | 1 | €11.09 | Shop Ad, affiliate link |
| Wago 221-412 (2-way), single pieces: 4 per blade (red+fuse, fuse+white, black+black, blue alone) | 16 | €0.55 | Shop |
| Wago 221-415 (5-way), single pieces: 4 for the bus + 2 per extra supply | 4 | €0.80 | Shop |
| ELNONE board plug, 2 pack (one per blade) | 2 | €8.56 | Shop Ad, affiliate link |
| JZK 5015 USB fans, 4 pack (blade heads + 4 base intake fans) | 2 | €13.61 | Shop Ad, affiliate link |
| Fuse holders, 5 pack (blades) | 1 | €6.82 | Shop Ad, affiliate link |
| 5 A fuses, 10 pack | 1 | €6.75 | Shop Ad, affiliate link |
| Keystone couplers, 10 pack | 1 | €14.36 | Shop Ad, affiliate link |
| Patch 0.25 m, 10 pack | 1 | €12.85 | Shop Ad, affiliate link |
| Patch 2 m, 5 pack | 1 | €11.09 | Shop Ad, affiliate link |
| Switch Cudy GS105U 5-port | 1 | €13.01 | Shop Ad, affiliate link |
| USB charger 50 W, 5 ports | 2 | €9.52 | Shop Ad, affiliate link |
| OULARA COB USB strip 2 m (model glow) | 1 | €21.17 | Shop Ad, affiliate link |
| OULARA COB USB strip 1 m (one on the inside of the cream liner in the stage box behind the backdrop, it lights the back slots; one on the liner's front face behind the two backdrop windows) | 2 | €14.11 | Shop Ad, affiliate link |
| M3 screws, 300 pcs | 1 | €14.05 | Shop Ad, affiliate link |
| Translucent PETG 1 kg (eSUN transparent orange) | 1 | €12.37 | Shop Ad, affiliate link |
| Opaque PETG 1 kg spool (eSUN black, budget; sold as a 4 kg bundle) | 13 | €9.07 | Shop Ad, affiliate link |
| Total, without boards | €448 | ||
Prices with VAT as shown in October 2026. Shipping, glue and the boards are not included. Also not counted, if you do not own them: a multimeter (about €8.56) and a power strip (about €15.12).
Budget black PETG.
Drives: every board keeps the drive its laptop came with (system only), so there is nothing to buy. A board bought without one needs a 256 GB M.2 2280 drive (approx. €56). Optional, not in the total: one shared disk of 1 TB or more for the render manager's shared folder, on one laptop board, in its own M.2 slot, or in a USB case (approx. €19) on the base floor. Reuse an old one, or buy a 1 TB M.2 2280 drive for approx. €136–146. Drive prices are approximate (October 2026): check before buying.
No printer yet?
To print it at this size: 12.3 kg of PETG. Add 10% for waste and test pieces and that is 14 spools of 1 kg, approx. €196–266 with the PETG below (the shopping list above already includes filament). Print time, estimated: about 622 h with the standard 0.4 mm nozzle (Ender-3 V3 SE class), 391 h with a 0.6 mm nozzle.
Print times are slicer estimates (OrcaSlicer) and may vary by ±15 %.
