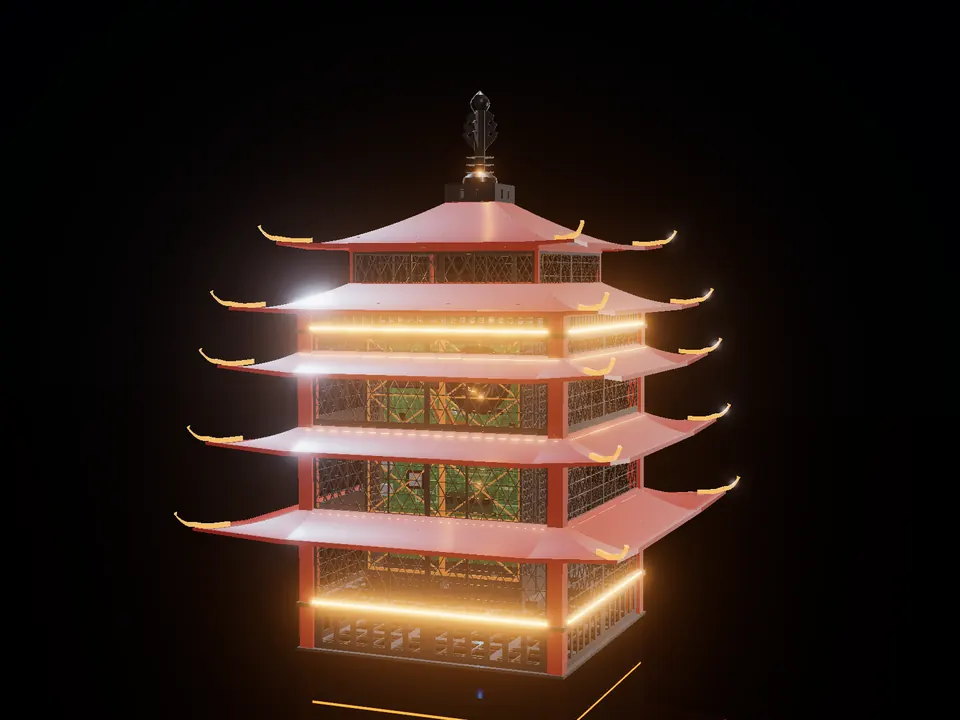

Compact pagoda
Five roofs, up to four laptops inside, 0.99 m tall.
Designed and checked in CAD. Not built in real life yet.
€24
Standard plan. Every computer count included.
Inside
Take it apart
Size
How many computers?
- Height
- 0.99 m
- Footprint
- 79 × 79 cm
- Computers
- 4 laptops
- Power
- 1 power supply, 120 of 260 W
- Filament
- 11.8 kg
- Print time
- 600 h
- OrcaSlicer estimate, ±15 %
- Weight with boards
- 15.8 kg
- Parts and filament, without boards
- €547
- With used laptops (€40–60 each)
- €707–787
About this model
Up to four laptop blades stand side by side in a packed core, and the three lower storeys of the pagoda close round them. The eaves step in on the way up, five roofs in all, with a light strip under each one and translucent horns on the corners. With one to four computers it is 0.99 m tall. The floor plate is 49 cm square; the lowest eaves reach 79 cm across. Laptops only: there is no desktop drawer, and one 260 W supply runs all four. To swap a blade you lift the top two roofs off as one piece and pull the blade straight up by its tab.
Worth knowing
Four computers is the limit. A fifth needs a second floor of blades, and that makes the pagoda 1.50 m, more than the metre a compact model may have. With four computers it takes about 11.8 kg of filament, most of it in the five roofs.
Shopping list
What to buy for it
| Item | Qty | Price each | Where |
|---|---|---|---|
| Shared supply MEAN WELL GST280A20-C6P | 1 | €93.80 | Shop |
| Mains cord C13, 2 m, one per supply (not in the supply's box) | 1 | €3.60 | Shop |
| Supply output lead Molex 215328-1061 | 1 | €5.20 | Shop |
| XT60 pigtails, 5 + 5 pack (one pair per blade) | 1 | €11.09 | Shop Ad, affiliate link |
| Wago 221-412 (2-way), single pieces: 4 per blade (red+fuse, fuse+white, black+black, blue alone) | 16 | €0.55 | Shop |
| Wago 221-415 (5-way), single pieces: 4 for the bus + 2 per extra supply | 4 | €0.80 | Shop |
| ELNONE board plug, 2 pack (one per blade) | 2 | €8.56 | Shop Ad, affiliate link |
| JZK 5015 USB fans, 4 pack (blade heads + 4 base intake fans) | 2 | €13.61 | Shop Ad, affiliate link |
| Fuse holders, 5 pack (blades) | 1 | €6.82 | Shop Ad, affiliate link |
| 5 A fuses, 10 pack | 1 | €6.75 | Shop Ad, affiliate link |
| Keystone couplers, 10 pack | 1 | €14.36 | Shop Ad, affiliate link |
| Patch 0.25 m, 10 pack | 1 | €12.85 | Shop Ad, affiliate link |
| Patch 2 m, 5 pack | 1 | €11.09 | Shop Ad, affiliate link |
| Switch Cudy GS105U 5-port | 1 | €13.01 | Shop Ad, affiliate link |
| USB charger 50 W, 5 ports | 3 | €9.52 | Shop Ad, affiliate link |
| OULARA COB USB strip 2 m (model glow) | 7 | €21.17 | Shop Ad, affiliate link |
| M3 screws, 300 pcs | 1 | €14.05 | Shop Ad, affiliate link |
| Translucent PETG 1 kg (eSUN transparent orange) | 1 | €12.37 | Shop Ad, affiliate link |
| Opaque PETG 1 kg spool (eSUN black, budget; sold as a 4 kg bundle) | 12 | €9.07 | Shop Ad, affiliate link |
| Total, without boards | €547 | ||
Prices with VAT as shown in October 2026. Shipping, glue and the boards are not included. Also not counted, if you do not own them: a multimeter (about €8.56) and a power strip (about €15.12).
Budget black PETG.
Drives: every board keeps the drive its laptop came with (system only), so there is nothing to buy. A board bought without one needs a 256 GB M.2 2280 drive (approx. €56). Optional, not in the total: one shared disk of 1 TB or more for the render manager's shared folder, on one laptop board, in its own M.2 slot, or in a USB case (approx. €19) on the base floor. Reuse an old one, or buy a 1 TB M.2 2280 drive for approx. €136–146. Drive prices are approximate (October 2026): check before buying.
No printer yet?
To print it at this size: 11.8 kg of PETG. Add 10% for waste and test pieces and that is 13 spools of 1 kg, approx. €182–247 with the PETG below (the shopping list above already includes filament). Print time, estimated: about 600 h with the standard 0.4 mm nozzle (Ender-3 V3 SE class), 396 h with a 0.6 mm nozzle.
Print times are slicer estimates (OrcaSlicer) and may vary by ±15 %.
