Night
Pagoda
Upswept roofs, a line of light under every eave.
Designed and checked in CAD. Not built in real life yet.
€24
Standard plan. Every computer count included.
Inside

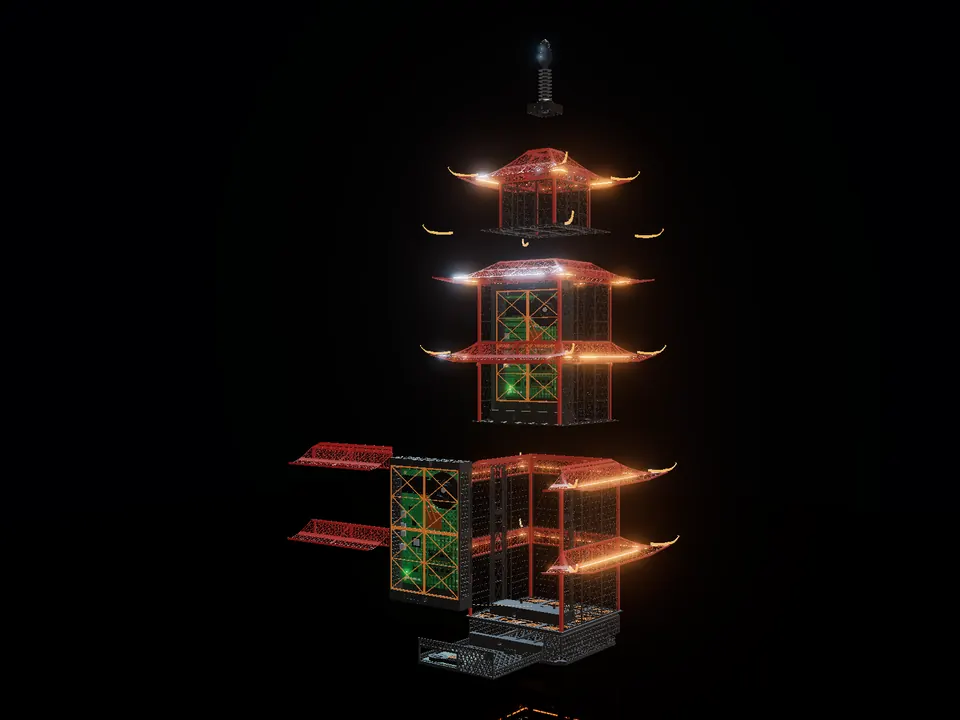

Take it apart
Size
How many computers?
- Height
- 1.82 m
- Footprint
- 75 × 75 cm
- Computers
- 2 laptops + desktop drawer
- Storeys
- 5
- Power
- 1 power supply, 168 of 260 W
- Filament
- 8.4 kg
- Print time
- 423 h
- OrcaSlicer estimate, ±15 %
- Weight with boards
- 11.4 kg
- Parts and filament, without boards
- €457
- With used laptops (€40–60 each)
- €537–577
About this model
A square Japanese pagoda with deep roofs whose corners curl upward, and the ringed spire on top. One blade for every two storeys: three, five or seven storeys. To pull a blade you lift the two front roof pieces of its storey, no tools. The roofs reach up to 75 cm across; the base on the floor is only 43 cm.
Worth knowing
At night it is our strongest model. By day, in wood colour, the roofs look more like a paper lantern than tiles, and the front faces of the roofs stay dark.
Shopping list
What to buy for it
| Item | Qty | Price each | Where |
|---|---|---|---|
| Shared supply MEAN WELL GST280A20-C6P | 1 | €93.80 | Shop |
| Mains cord C13, 2 m, one per supply (not in the supply's box) | 1 | €3.60 | Shop |
| Supply output lead Molex 215328-1061 | 1 | €5.20 | Shop |
| XT60 pigtails, 5 + 5 pack (one pair per blade + drawer) | 1 | €11.09 | Shop Ad, affiliate link |
| Wago 221-412 (2-way), single pieces: 4 per blade (red+fuse, fuse+white, black+black, blue alone) | 8 | €0.55 | Shop |
| Wago 221-415 (5-way), single pieces: 4 for the bus + 2 per extra supply | 4 | €0.80 | Shop |
| ELNONE board plug, 2 pack (one per blade) | 1 | €8.56 | Shop Ad, affiliate link |
| JZK 5015 USB fans, 4 pack (blade heads + 4 lid fans) | 2 | €13.61 | Shop Ad, affiliate link |
| Fuse holders, 5 pack (blades + drawer) | 1 | €6.82 | Shop Ad, affiliate link |
| 5 A fuses, 10 pack | 1 | €6.75 | Shop Ad, affiliate link |
| Keystone couplers, 10 pack | 1 | €14.36 | Shop Ad, affiliate link |
| Patch 0.25 m, 10 pack | 1 | €12.85 | Shop Ad, affiliate link |
| Patch 2 m, 5 pack | 1 | €11.09 | Shop Ad, affiliate link |
| Switch Cudy GS105U 5-port | 1 | €13.01 | Shop Ad, affiliate link |
| USB charger 50 W, 5 ports | 2 | €9.52 | Shop Ad, affiliate link |
| OULARA COB USB strip 2 m (model glow) | 5 | €21.17 | Shop Ad, affiliate link |
| XT60 1 m extension leads for the upper tiers (chained) | 1 | €11.09 | Shop Ad, affiliate link |
| M3 screws, 300 pcs | 1 | €14.05 | Shop Ad, affiliate link |
| Translucent PETG 1 kg (eSUN transparent orange) | 1 | €12.37 | Shop Ad, affiliate link |
| Opaque PETG 1 kg spool (eSUN black, budget; sold as a 4 kg bundle) | 8 | €9.07 | Shop Ad, affiliate link |
| Total, without boards | €457 | ||
Prices with VAT as shown in October 2026. Shipping, glue and the boards are not included. Also not counted, if you do not own them: a multimeter (about €8.56) and a power strip (about €15.12).
Budget black PETG.
Drives: every board keeps the drive its laptop came with (system only), so there is nothing to buy. A board bought without one needs a 256 GB M.2 2280 drive (approx. €56). Optional, not in the total: one shared disk of 1 TB or more for the render manager's shared folder, on the desktop board in the drawer, in its M.2 slot. Reuse an old one, or buy a 1 TB M.2 2280 drive for approx. €136–146. Drive prices are approximate (October 2026): check before buying.
No printer yet?
To print it at this size: 8.4 kg of PETG. Add 10% for waste and test pieces and that is 10 spools of 1 kg, approx. €140–190 with the PETG below (the shopping list above already includes filament). Print time, estimated: about 423 h with the standard 0.4 mm nozzle (Ender-3 V3 SE class), 295 h with a 0.6 mm nozzle.
Print times are slicer estimates (OrcaSlicer) and may vary by ±15 %.
Advertising: the links in this list are affiliate links. If you buy through them I earn a small commission. The price for you does not change.
As an Amazon Associate I earn from qualifying purchases.
Printers that take every part (bed 220 × 220 mm or more): Creality Ender-3 V3 SE (€169) · Bambu Lab A1 (€259) · Bambu Lab P1S (€379)
PETG: Elegoo PETG Pro, 1 kg (€13.99/kg) · Bambu PETG Basic, 1 kg with spool (€18.99/kg)
Prices as shown on each shop's own page in October 2026. Shipping and the final VAT are added at checkout.
