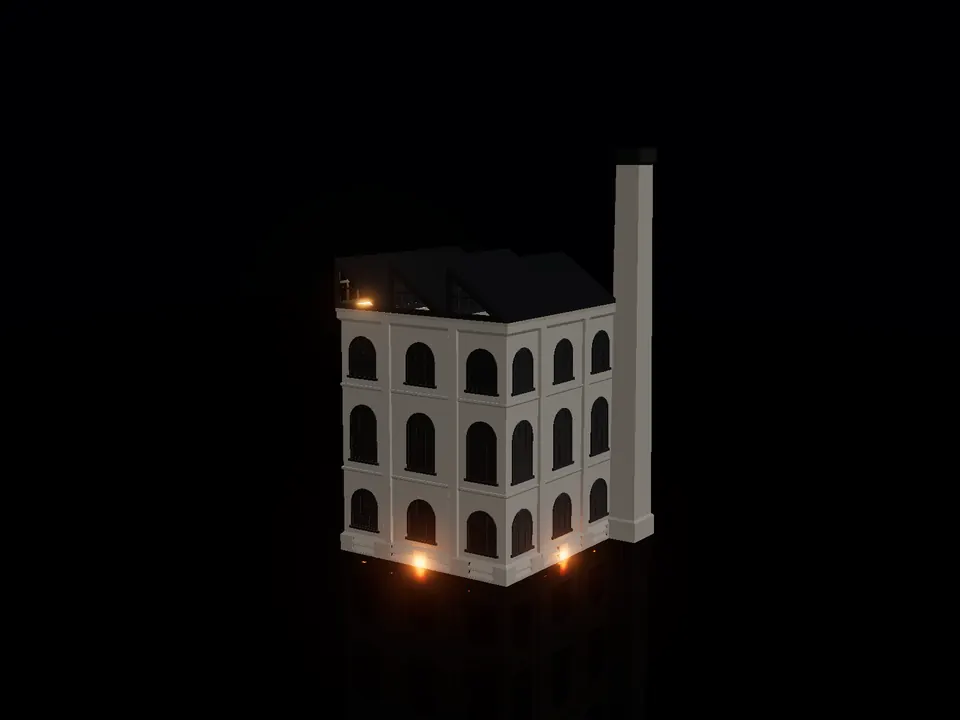

Night, white
Compact sawtooth factory
An old factory hall with arched steel windows, a sawtooth roof and a tall chimney, up to four laptops inside, the roof glazing glows at night. 1 m tall.
Designed and checked in CAD. Not built in real life yet.
€24
Standard plan. Every computer count included.
Inside
Take it apart
Size
How many computers?
- Height
- 0.99 m
- Footprint
- 58 × 58 cm
- Computers
- 4 laptops
- Power
- 1 power supply, 120 of 260 W
- Filament
- 12.3 kg
- Print time
- 660 h
- OrcaSlicer estimate, ±15 %
- Weight with boards
- 16.4 kg
- Parts and filament, without boards
- €434
- With used laptops (€40–60 each)
- €594–674
About this model
A factory of no particular company or town: a square hall with pilaster strips and three floors of round-arched steel windows on every side, a sawtooth roof of three north-light teeth with a triangular window in every gable, and a tall square chimney against one corner. Up to four laptop blades stand in a row inside the hall. Its walls are solid, so from outside you never see a computer board; the windows on the walls are glued on and stay dark. Air comes in through the slatted vents in the plinth and leaves through the glazing of the sawtooth roof and the gable windows, which glow at night from a strip under the roof. You pick 2, 3 or 4 computers and the model stays the same size: 0.58 x 0.58 m with the chimney, 99 cm tall.
Worth knowing
About 10.6 kg of filament with two computers and 12.3 kg with four (roughly 350 to 410 hours on a fast printer), in two colours: a light one for the hall, the pilasters and the chimney, and a dark one for the windows, the sawtooth roof and the chimney cap. There are many small glued parts: 36 windows and 24 pilaster pieces. The chimney is five pieces glued end to end and onto one corner of the hall; it is for looks only: do not lift the factory by it. The sawtooth roof is nine pieces glued on its floor plate and is not glued down because it is the way in; lift it straight up with both hands.
Shopping list
What to buy for it
| Item | Qty | Price each | Where |
|---|---|---|---|
| Shared supply MEAN WELL GST280A20-C6P | 1 | €93.80 | Shop |
| Mains cord C13, 2 m, one per supply (not in the supply's box) | 1 | €3.60 | Shop |
| Supply output lead Molex 215328-1061 | 1 | €5.20 | Shop |
| XT60 pigtails, 5 + 5 pack (one pair per blade) | 1 | €11.09 | Shop Ad, affiliate link |
| Wago 221-412 (2-way), single pieces: 4 per blade (red+fuse, fuse+white, black+black, blue alone) | 16 | €0.55 | Shop |
| Wago 221-415 (5-way), single pieces: 4 for the bus + 2 per extra supply | 4 | €0.80 | Shop |
| ELNONE board plug, 2 pack (one per blade) | 2 | €8.56 | Shop Ad, affiliate link |
| JZK 5015 USB fans, 4 pack (blade heads + 4 base intake fans) | 2 | €13.61 | Shop Ad, affiliate link |
| Fuse holders, 5 pack (blades) | 1 | €6.82 | Shop Ad, affiliate link |
| 5 A fuses, 10 pack | 1 | €6.75 | Shop Ad, affiliate link |
| Keystone couplers, 10 pack | 1 | €14.36 | Shop Ad, affiliate link |
| Patch 0.25 m, 10 pack | 1 | €12.85 | Shop Ad, affiliate link |
| Patch 2 m, 5 pack | 1 | €11.09 | Shop Ad, affiliate link |
| Switch Cudy GS105U 5-port | 1 | €13.01 | Shop Ad, affiliate link |
| USB charger 50 W, 5 ports | 2 | €9.52 | Shop Ad, affiliate link |
| OULARA COB USB strip 2 m (model glow) | 1 | €21.17 | Shop Ad, affiliate link |
| OULARA COB USB strip 1 m (round the roof plate inside the sawtooth roof, it lights the glazing and the gable windows) | 1 | €14.11 | Shop Ad, affiliate link |
| M3 screws, 300 pcs | 1 | €14.05 | Shop Ad, affiliate link |
| Translucent PETG 1 kg (eSUN transparent orange) | 1 | €12.37 | Shop Ad, affiliate link |
| Opaque PETG 1 kg spool (eSUN black, budget; sold as a 4 kg bundle) | 13 | €9.07 | Shop Ad, affiliate link |
| Total, without boards | €434 | ||
Prices with VAT as shown in October 2026. Shipping, glue and the boards are not included. Also not counted, if you do not own them: a multimeter (about €8.56) and a power strip (about €15.12).
Budget black PETG.
Drives: every board keeps the drive its laptop came with (system only), so there is nothing to buy. A board bought without one needs a 256 GB M.2 2280 drive (approx. €56). Optional, not in the total: one shared disk of 1 TB or more for the render manager's shared folder, on one laptop board, in its own M.2 slot, or in a USB case (approx. €19) on the base floor. Reuse an old one, or buy a 1 TB M.2 2280 drive for approx. €136–146. Drive prices are approximate (October 2026): check before buying.
No printer yet?
To print it at this size: 12.3 kg of PETG. Add 10% for waste and test pieces and that is 14 spools of 1 kg, approx. €196–266 with the PETG below (the shopping list above already includes filament). Print time, estimated: about 660 h with the standard 0.4 mm nozzle (Ender-3 V3 SE class), 410 h with a 0.6 mm nozzle.
Print times are slicer estimates (OrcaSlicer) and may vary by ±15 %.
Advertising: the links in this list are affiliate links. If you buy through them I earn a small commission. The price for you does not change.
As an Amazon Associate I earn from qualifying purchases.
Printers that take every part (bed 220 × 220 mm or more): Creality Ender-3 V3 SE (€169) · Bambu Lab A1 (€259) · Bambu Lab P1S (€379)
PETG: Elegoo PETG Pro, 1 kg (€13.99/kg) · Bambu PETG Basic, 1 kg with spool (€18.99/kg)
Prices as shown on each shop's own page in October 2026. Shipping and the final VAT are added at checkout.
