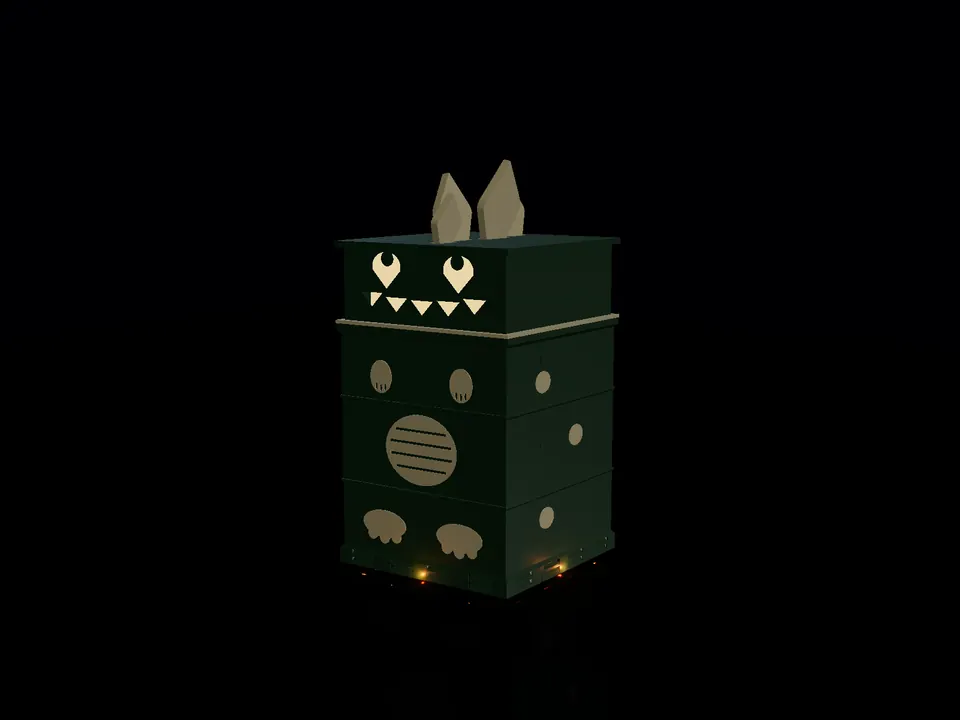

Night, white
Compact toy dinosaur
A dark green toy dinosaur with four tall cream plates on its back, up to four laptops inside; at night its big eyes and toothy grin glow at the front and two footprints glow at the back. 99 cm tall.
Designed and checked in CAD. Not built in real life yet.
€24
Standard plan. Every computer count included.
Inside
Take it apart
Size
How many computers?
- Height
- 0.99 m
- Footprint
- 50 × 50 cm
- Computers
- 4 laptops
- Power
- 1 power supply, 120 of 260 W
- Filament
- 12.3 kg
- Print time
- 668 h
- OrcaSlicer estimate, ±15 %
- Weight with boards
- 16.3 kg
- Parts and filament, without boards
- €448
- With used laptops (€40–60 each)
- €608–688
About this model
A chunky toy dinosaur of no particular story or character: a square dark green body with two big cream feet at the bottom (each with three round toes), a cream belly with green stripes, two stubby cream paws at the shoulders, three cream spots on each side and a column of cream spikes running down its back. On top sits its head with a row of four tall cream plates standing along the ridge, leaning left and right in turn. The head is carved right through: two big round eyes and a wide grin full of teeth at the front, two three-toed footprints at the back. Inside the head a cream wall is lit from behind, so at night the dinosaur grins with glowing eyes, and from behind you see its tracks walking away. Up to four laptop blades stand in a row in the body. Its walls are solid, so from outside you never see a computer board; feet, belly, paws, spots and spikes are glued on. Air comes in through the slatted vents in the plinth and leaves through the carvings. You pick 2, 3 or 4 computers and the model stays the same size: 0.50 x 0.50 m, 99 cm tall to the tip of the biggest plate. The plates stand edge-on to the front, so they show best from the side and from three quarters.
Worth knowing
About 10.5 kg of filament with two computers and 12.3 kg with four (roughly 355 to 415 hours on a fast printer), in two colours: dark green for the body and the head, and cream for the feet, the belly, the paws, the spots, the spikes, the back plates, the head's floor plate and the inner wall of the head. The head is printed in nine cells with a 1.2 mm roof skin and glued together, so handle it with care. The back plates are hollow and glued onto the roof by their foot; they are decoration, never lift the dinosaur by them. They sit on the 1.2 mm roof skin, so a hard knock can snap them off. Seen from straight in front the plates are edge-on; they read best from three quarters and from the side. It needs two 1 m LED strips, one for each half of the inner wall. The head (plate, cells, inner wall and back plates glued into one) is not glued down because it is the way in; lift it straight up with both hands under the edge of its roof, never by the plates.
Shopping list
What to buy for it
| Item | Qty | Price each | Where |
|---|---|---|---|
| Shared supply MEAN WELL GST280A20-C6P | 1 | €93.80 | Shop |
| Mains cord C13, 2 m, one per supply (not in the supply's box) | 1 | €3.60 | Shop |
| Supply output lead Molex 215328-1061 | 1 | €5.20 | Shop |
| XT60 pigtails, 5 + 5 pack (one pair per blade) | 1 | €11.09 | Shop Ad, affiliate link |
| Wago 221-412 (2-way), single pieces: 4 per blade (red+fuse, fuse+white, black+black, blue alone) | 16 | €0.55 | Shop |
| Wago 221-415 (5-way), single pieces: 4 for the bus + 2 per extra supply | 4 | €0.80 | Shop |
| ELNONE board plug, 2 pack (one per blade) | 2 | €8.56 | Shop Ad, affiliate link |
| JZK 5015 USB fans, 4 pack (blade heads + 4 base intake fans) | 2 | €13.61 | Shop Ad, affiliate link |
| Fuse holders, 5 pack (blades) | 1 | €6.82 | Shop Ad, affiliate link |
| 5 A fuses, 10 pack | 1 | €6.75 | Shop Ad, affiliate link |
| Keystone couplers, 10 pack | 1 | €14.36 | Shop Ad, affiliate link |
| Patch 0.25 m, 10 pack | 1 | €12.85 | Shop Ad, affiliate link |
| Patch 2 m, 5 pack | 1 | €11.09 | Shop Ad, affiliate link |
| Switch Cudy GS105U 5-port | 1 | €13.01 | Shop Ad, affiliate link |
| USB charger 50 W, 5 ports | 2 | €9.52 | Shop Ad, affiliate link |
| OULARA COB USB strip 2 m (model glow) | 1 | €21.17 | Shop Ad, affiliate link |
| OULARA COB USB strip 1 m (on the inside of the cream liner in the dinosaur's head, one per half, the liner glows behind the eyes, the grin and the footprints) | 2 | €14.11 | Shop Ad, affiliate link |
| M3 screws, 300 pcs | 1 | €14.05 | Shop Ad, affiliate link |
| Translucent PETG 1 kg (eSUN transparent orange) | 1 | €12.37 | Shop Ad, affiliate link |
| Opaque PETG 1 kg spool (eSUN black, budget; sold as a 4 kg bundle) | 13 | €9.07 | Shop Ad, affiliate link |
| Total, without boards | €448 | ||
Prices with VAT as shown in October 2026. Shipping, glue and the boards are not included. Also not counted, if you do not own them: a multimeter (about €8.56) and a power strip (about €15.12).
Budget black PETG.
Drives: every board keeps the drive its laptop came with (system only), so there is nothing to buy. A board bought without one needs a 256 GB M.2 2280 drive (approx. €56). Optional, not in the total: one shared disk of 1 TB or more for the render manager's shared folder, on one laptop board, in its own M.2 slot, or in a USB case (approx. €19) on the base floor. Reuse an old one, or buy a 1 TB M.2 2280 drive for approx. €136–146. Drive prices are approximate (October 2026): check before buying.
No printer yet?
To print it at this size: 12.3 kg of PETG. Add 10% for waste and test pieces and that is 14 spools of 1 kg, approx. €196–266 with the PETG below (the shopping list above already includes filament). Print time, estimated: about 668 h with the standard 0.4 mm nozzle (Ender-3 V3 SE class), 414 h with a 0.6 mm nozzle.
Print times are slicer estimates (OrcaSlicer) and may vary by ±15 %.
Advertising: the links in this list are affiliate links. If you buy through them I earn a small commission. The price for you does not change.
As an Amazon Associate I earn from qualifying purchases.
Printers that take every part (bed 220 × 220 mm or more): Creality Ender-3 V3 SE (€169) · Bambu Lab A1 (€259) · Bambu Lab P1S (€379)
PETG: Elegoo PETG Pro, 1 kg (€13.99/kg) · Bambu PETG Basic, 1 kg with spool (€18.99/kg)
Prices as shown on each shop's own page in October 2026. Shipping and the final VAT are added at checkout.
