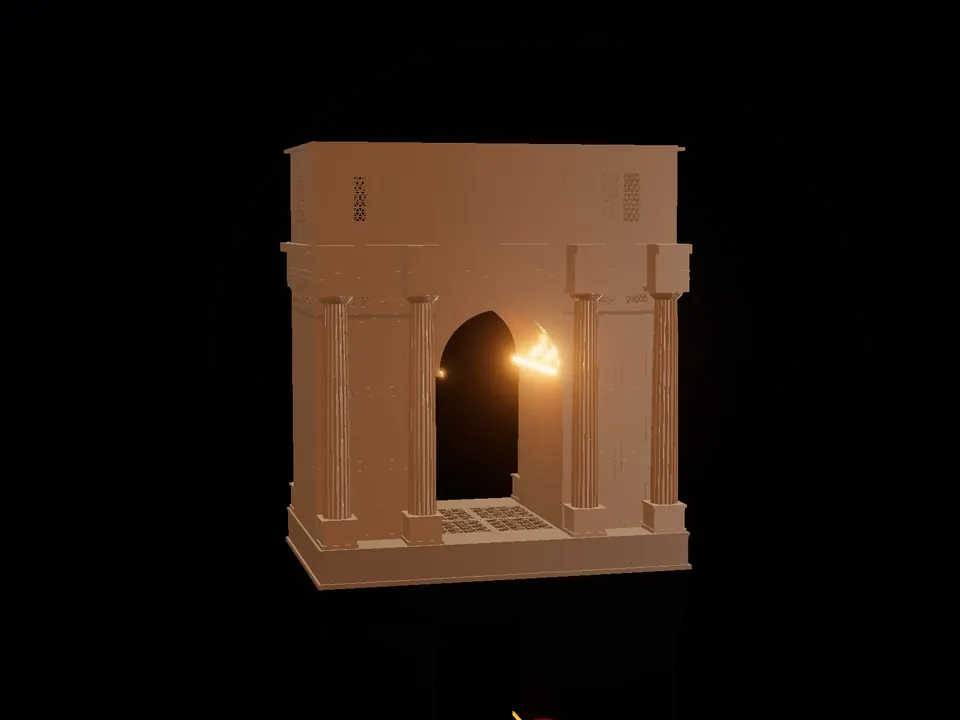

Night, bronze
Compact triumphal arch
Up to four laptops hide inside the two piers, 0.91 m tall.
Designed and checked in CAD. Not built in real life yet.
€24
Standard plan. Every computer count included.
Inside
Take it apart
Size
How many computers?
- Height
- 0.91 m
- Footprint
- 54 × 84 cm
- Computers
- 4 laptops
- Power
- 1 power supply, 120 of 260 W
- Filament
- 18.0 kg
- Print time
- 942 h
- OrcaSlicer estimate, ±15 %
- Weight with boards
- 22.0 kg
- Parts and filament, without boards
- €493
- With used laptops (€40–60 each)
- €653–733
About this model
A Roman-style triumphal arch: two solid piers, one big arch you can see straight through, eight columns on pedestals, a cornice that steps forward over each column and a tall attic with a blank inscription panel. Each pier holds up to two laptop blades back to back. The walls in front of the boards are solid, so you don't see the computers from any side. You pick 1 to 4 computers and the arch stays the same: 0.91 m tall, 0.84 m wide, 0.54 m deep. Air comes in through the lattice floor under the arch, runs through the hollow base, rises through the floor of each pier past the board and leaves through the lattice windows above the piers and the lids on top. The ceiling of the arch is a coffered vault, and at night two LED strips on the ledges under it light it up. One 260 W supply runs everything; the supply, the network switch and the shared disk lie inside the base, under the floor of the arch. To swap a blade you lift the lid above its pier and pull the blade straight up by its tab.
Worth knowing
The solid walls that hide the boards cost filament: about 15.9 kg with two computers and 18 kg with four (roughly 630 to 720 hours on a fast printer), more than the compact temple. The columns and the walls carry the top; the blades only stand in their shoes. The lids are held by their lips and weight, not glued, because they are the way in.
Shopping list
What to buy for it
| Item | Qty | Price each | Where |
|---|---|---|---|
| Shared supply MEAN WELL GST280A20-C6P | 1 | €93.80 | Shop |
| Mains cord C13, 2 m, one per supply (not in the supply's box) | 1 | €3.60 | Shop |
| Supply output lead Molex 215328-1061 | 1 | €5.20 | Shop |
| XT60 pigtails, 5 + 5 pack (one pair per blade) | 1 | €11.09 | Shop Ad, affiliate link |
| Wago 221-412 (2-way), single pieces: 4 per blade (red+fuse, fuse+white, black+black, blue alone) | 16 | €0.55 | Shop |
| Wago 221-415 (5-way), single pieces: 4 for the bus + 2 per extra supply | 4 | €0.80 | Shop |
| ELNONE board plug, 2 pack (one per blade) | 2 | €8.56 | Shop Ad, affiliate link |
| JZK 5015 USB fans, 4 pack (one per blade head) | 1 | €13.61 | Shop Ad, affiliate link |
| Fuse holders, 5 pack (blades) | 1 | €6.82 | Shop Ad, affiliate link |
| 5 A fuses, 10 pack | 1 | €6.75 | Shop Ad, affiliate link |
| Keystone couplers, 10 pack | 1 | €14.36 | Shop Ad, affiliate link |
| Patch 0.25 m, 10 pack | 1 | €12.85 | Shop Ad, affiliate link |
| Patch 2 m, 5 pack | 1 | €11.09 | Shop Ad, affiliate link |
| Switch Cudy GS105U 5-port | 1 | €13.01 | Shop Ad, affiliate link |
| USB charger 50 W, 5 ports | 1 | €9.52 | Shop Ad, affiliate link |
| OULARA COB USB strip 1 m (one on each impost, they light the coffered vault) | 2 | €14.11 | Shop Ad, affiliate link |
| XT60 1 m extension leads from the piers to the bus under the passage (one per blade) | 4 | €11.09 | Shop Ad, affiliate link |
| M3 screws, 300 pcs | 1 | €14.05 | Shop Ad, affiliate link |
| Translucent PETG 1 kg (eSUN transparent orange) | 1 | €12.37 | Shop Ad, affiliate link |
| Opaque PETG 1 kg spool (eSUN black, budget; sold as a 4 kg bundle) | 18 | €9.07 | Shop Ad, affiliate link |
| Total, without boards | €493 | ||
Prices with VAT as shown in October 2026. Shipping, glue and the boards are not included. Also not counted, if you do not own them: a multimeter (about €8.56) and a power strip (about €15.12).
Budget black PETG.
Drives: every board keeps the drive its laptop came with (system only), so there is nothing to buy. A board bought without one needs a 256 GB M.2 2280 drive (approx. €56). Optional, not in the total: one shared disk of 1 TB or more for the render manager's shared folder, on one laptop board, in its own M.2 slot, or in a USB case (approx. €19) on the base floor. Reuse an old one, or buy a 1 TB M.2 2280 drive for approx. €136–146. Drive prices are approximate (October 2026): check before buying.
No printer yet?
To print it at this size: 18.0 kg of PETG. Add 10% for waste and test pieces and that is 20 spools of 1 kg, approx. €280–380 with the PETG below (the shopping list above already includes filament). Print time, estimated: about 942 h with the standard 0.4 mm nozzle (Ender-3 V3 SE class), 588 h with a 0.6 mm nozzle.
Print times are slicer estimates (OrcaSlicer) and may vary by ±15 %.
Advertising: the links in this list are affiliate links. If you buy through them I earn a small commission. The price for you does not change.
As an Amazon Associate I earn from qualifying purchases.
Printers that take every part (bed 220 × 220 mm or more): Creality Ender-3 V3 SE (€169) · Bambu Lab A1 (€259) · Bambu Lab P1S (€379)
PETG: Elegoo PETG Pro, 1 kg (€13.99/kg) · Bambu PETG Basic, 1 kg with spool (€18.99/kg)
Prices as shown on each shop's own page in October 2026. Shipping and the final VAT are added at checkout.
