Night, white
Compact arcade cabinet

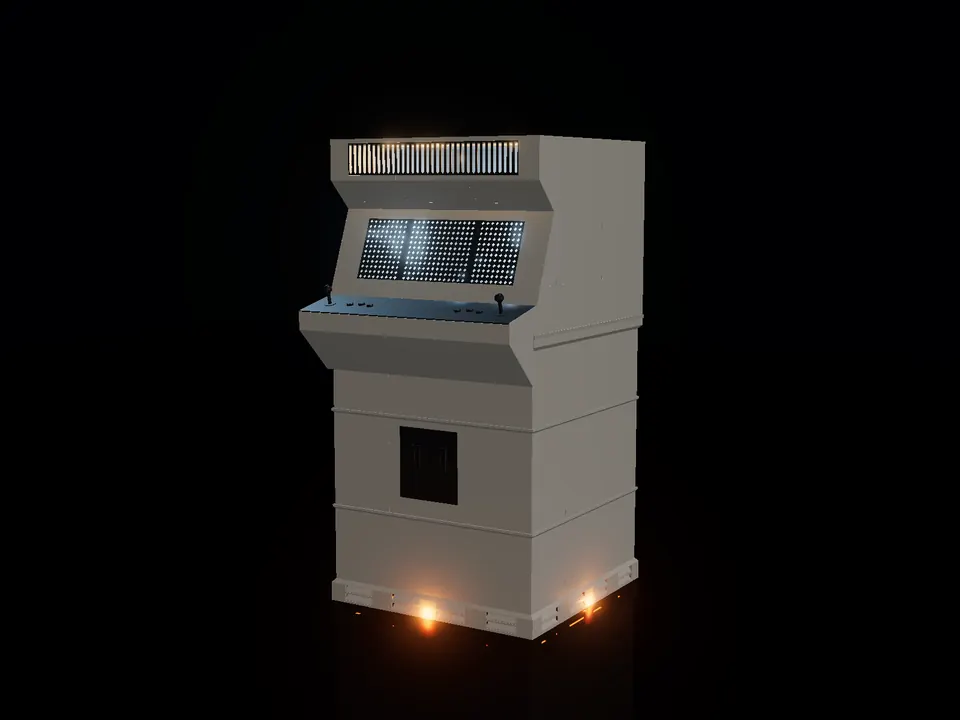

An upright arcade cabinet with a control panel, a pixel screen and a marquee, up to four laptops in the lower cabinet, the screen glowing at night. 1 m tall.
Designed and checked in CAD. Not built in real life yet.
€24
Standard plan. Every computer count included.
Inside
Take it apart
Size
How many computers?
- Height
- 0.99 m
- Footprint
- 60 × 50 cm
- Computers
- 4 laptops
- Power
- 1 power supply, 120 of 260 W
- Filament
- 12.5 kg
- Print time
- 675 h
- OrcaSlicer estimate, ±15 %
- Weight with boards
- 16.5 kg
- Parts and filament, without boards
- €434
- With used laptops (€40–60 each)
- €594–674
About this model
An arcade cabinet of no particular game or maker: a square lower cabinet with a coin door, a control panel with two joysticks and six buttons, a screen leaning back and a marquee box on top. Up to four laptop blades stand in a row inside the lower cabinet. Its walls are solid, so from outside you never see a computer board. Air comes in through the slatted vents in the plinth and leaves through the screen's diamond pixels and the marquee's slots, which glow at night from a strip on the roof plate. You pick 2, 3 or 4 computers and the model stays the same size: 0.60 x 0.50 m, 99 cm tall.
Worth knowing
About 10.7 kg of filament with two computers and 12.5 kg with four (roughly 360 to 420 hours on a fast printer), in two colours: a light one for the cabinet and a dark one for the screen, the marquee, the control panel, buttons, joysticks and coin door. The upper cabinet is 25 thin pieces (1.2 to 1.6 mm) glued edge to edge: build it on the roof plate and let the glue cure before you lift it. The top band prints upside down. The upper cabinet is not glued down because it is the way in; lift it straight up with both hands. The back is a plain box: all the detail is on the front. The screen is a pixel pattern, not a picture.
Shopping list
What to buy for it
| Item | Qty | Price each | Where |
|---|---|---|---|
| Shared supply MEAN WELL GST280A20-C6P | 1 | €93.80 | Shop |
| Mains cord C13, 2 m, one per supply (not in the supply's box) | 1 | €3.60 | Shop |
| Supply output lead Molex 215328-1061 | 1 | €5.20 | Shop |
| XT60 pigtails, 5 + 5 pack (one pair per blade) | 1 | €11.09 | Shop Ad, affiliate link |
| Wago 221-412 (2-way), single pieces: 4 per blade (red+fuse, fuse+white, black+black, blue alone) | 16 | €0.55 | Shop |
| Wago 221-415 (5-way), single pieces: 4 for the bus + 2 per extra supply | 4 | €0.80 | Shop |
| ELNONE board plug, 2 pack (one per blade) | 2 | €8.56 | Shop Ad, affiliate link |
| JZK 5015 USB fans, 4 pack (blade heads + 4 base intake fans) | 2 | €13.61 | Shop Ad, affiliate link |
| Fuse holders, 5 pack (blades) | 1 | €6.82 | Shop Ad, affiliate link |
| 5 A fuses, 10 pack | 1 | €6.75 | Shop Ad, affiliate link |
| Keystone couplers, 10 pack | 1 | €14.36 | Shop Ad, affiliate link |
| Patch 0.25 m, 10 pack | 1 | €12.85 | Shop Ad, affiliate link |
| Patch 2 m, 5 pack | 1 | €11.09 | Shop Ad, affiliate link |
| Switch Cudy GS105U 5-port | 1 | €13.01 | Shop Ad, affiliate link |
| USB charger 50 W, 5 ports | 2 | €9.52 | Shop Ad, affiliate link |
| OULARA COB USB strip 2 m (model glow) | 1 | €21.17 | Shop Ad, affiliate link |
| OULARA COB USB strip 1 m (round the roof plate inside the upper cabinet, it lights the screen and the marquee) | 1 | €14.11 | Shop Ad, affiliate link |
| M3 screws, 300 pcs | 1 | €14.05 | Shop Ad, affiliate link |
| Translucent PETG 1 kg (eSUN transparent orange) | 1 | €12.37 | Shop Ad, affiliate link |
| Opaque PETG 1 kg spool (eSUN black, budget; sold as a 4 kg bundle) | 13 | €9.07 | Shop Ad, affiliate link |
| Total, without boards | €434 | ||
Prices with VAT as shown in October 2026. Shipping, glue and the boards are not included. Also not counted, if you do not own them: a multimeter (about €8.56) and a power strip (about €15.12).
Budget black PETG.
Drives: every board keeps the drive its laptop came with (system only), so there is nothing to buy. A board bought without one needs a 256 GB M.2 2280 drive (approx. €56). Optional, not in the total: one shared disk of 1 TB or more for the render manager's shared folder, on one laptop board, in its own M.2 slot, or in a USB case (approx. €19) on the base floor. Reuse an old one, or buy a 1 TB M.2 2280 drive for approx. €136–146. Drive prices are approximate (October 2026): check before buying.
No printer yet?
To print it at this size: 12.5 kg of PETG. Add 10% for waste and test pieces and that is 14 spools of 1 kg, approx. €196–266 with the PETG below (the shopping list above already includes filament). Print time, estimated: about 675 h with the standard 0.4 mm nozzle (Ender-3 V3 SE class), 419 h with a 0.6 mm nozzle.
Print times are slicer estimates (OrcaSlicer) and may vary by ±15 %.
